JFT – Metallized Polypropylene Film AC Capacitor Class-X1

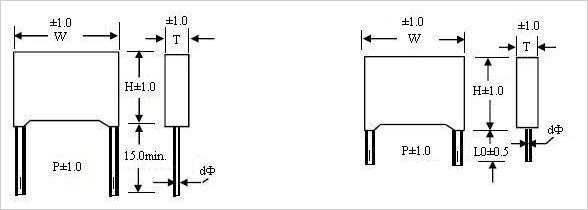

jb Capacitors manufactures Metallized Polypropylene Film Capacitor Class-X1, this capacitor also named X1 Interference Suppression Film Capacitors. jb Capacitors have good price offer for this X1 Class Film Capacitors. Following are Metallized Polypropylene Film AC Capacitor Class-X1 features, specifications and drawing.

Spec Sheet

Email sales@bec.co.uk or call +44 (0)7774 754604 for pricing and more information

SKU: JFT Categories: ,

Description

JFT – Metallized Polypropylene Film AC Capacitor Class-X1 Features

  • This specifications cover the requirements of jb Metallized Polypropylene
  • Film AC Capacitor (Interference Suppressors Class-X1)
Capacitor Class “X1” stands for X1 class
Climatic Category 55/ 105/ 21
Operating Temperature Range -55°C~ +105°C (for which the capacitor can be
operated continuously at rated voltage.
Rated Voltage 300V.AC, 440V.AC
Capacitance Range 0.0022 ~ 4.7μF
Capacitance Tolerance ±10%
Insulation Resistance (I.R.) >=15,000 MOhm (C<=0.33μF)
>=5,000 MOhm (C>0.33μF)
Dissipation Factor (DF) 0.001 (0.1%)max. at 1KHz
