RB/8 Series

Fixed power wirewound resistors aluminium housed with screw leads (TOP)

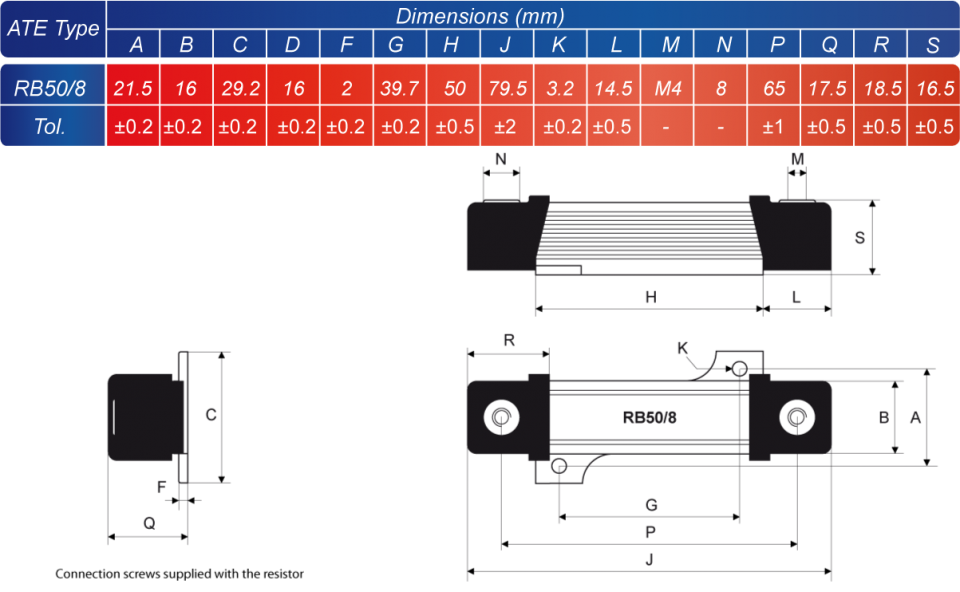

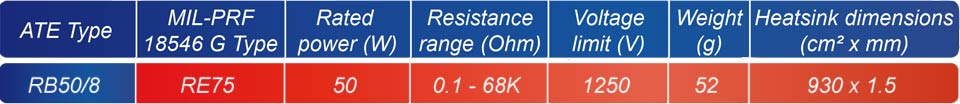

Electrical Specifications

Electrical Specifications

– Ohmic values

E24 Series. For out of range or not standard ohmic values, consult ATE Technical Dept.

– Tolerance

Standard 5%. Available on request up to 1%

– Temperature coefficient

From ±100 to ±30 ppm from R10 to Rmax

– Dielectric strength

2500Vac / 3500Vac peak

– Insulation resistance

10000 MOhm minimum

1000 MOhm after moisture test

– Overload

5s at 5 times rated power

– Non inductive

Models of equivalent physical and electrical specifications are also available with non inductive Ayrton-Perry winding

– Leads

M4 threaded hole

– Terminal screw tightening torque

1,5Nm (static)

These resistors meet or exceed the requirements of

MIL – PRF – 18546 G specifications
