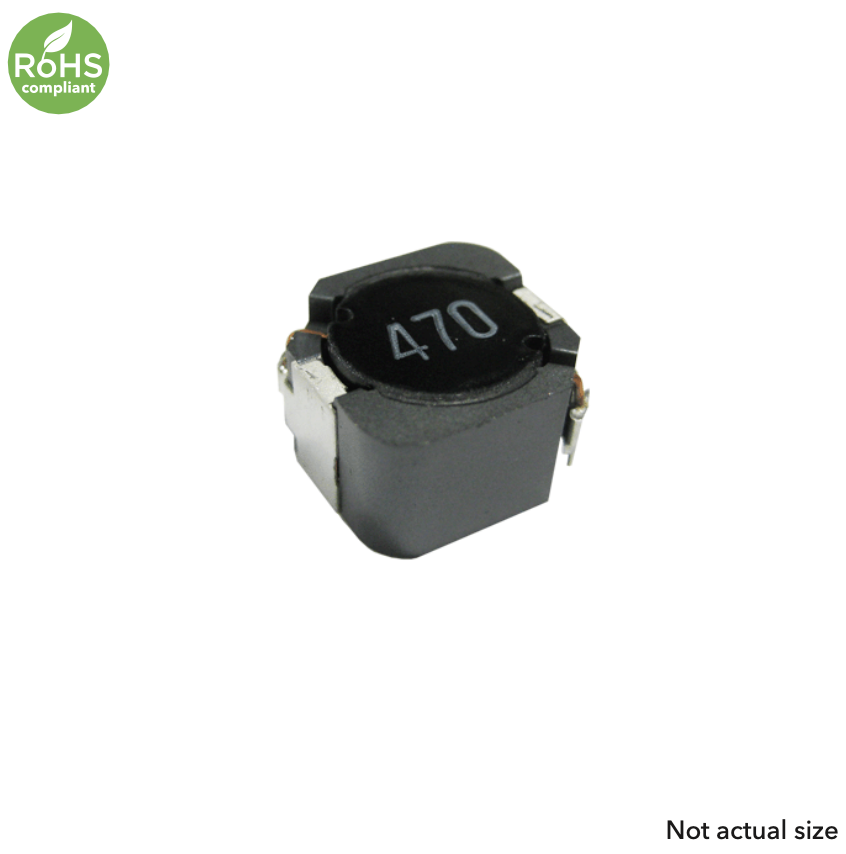

02-678F Series Power Inductors – Shielded

Description

The 02-678F series is designed for high-current power applications, offering a wide inductance range from 1.5µH to 470µH in a compact 12.5 x 12.3 x 8.0 mm footprint.

With saturation current up to 23.5A and low DCR down to 5.5mΩ, this series is well suited for efficient power conversion and filtering.

Typical applications include power supplies, LED drivers, set-top boxes, LCD displays, audiovisual equipment, and other commercial electronic designs.

Key features:

• Inductance range: 1.5µH to 470µH
• High saturation current (up to 23.5A)
• Low DC resistance (down to 5.5mΩ)
• Compact SMD package (12.5 x 12.3 x 8.0 mm)
• Tape & reel packaging
• RoHS compliant
