JFLA-Dipped-Metallized-Polypropylene-Film-Capacitor-For-Capacitive-Divider

JFLA Dipped Metallized Polypropylene Film Capacitor For Capacitive Divider

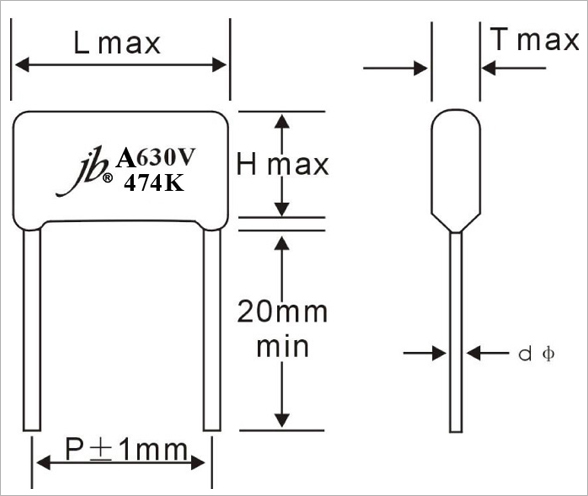

Suitable for applications in serial with the 100~240Vac mains, as a small power LED driver module, small household electrical appliances control panel (electric kettle, electric cooker, coffee machine, hair straightener etc.), thermostat, replace the transformer. Widely used in LC resonant, high frequency high current situation Following are our Metallized Polypropylene Film Capacitor features, specifications and drawing.

Spec Sheet

Email sales@bec.co.uk or call +44 (0) 1844 275824 for pricing and more information

SKU: JLFA Categories: jb Capacitors, Plastic Film Capacitors

Description
Reviews (0)

Description

JFLA Dipped Metallized Polypropylene Film Capacitor For Capacitive Divider Features

Metallized polypropylene film, non-inductive wound construction
Good self-healing properties, withstanding surge voltage stressing.
Long stability of capacitance.
Good properties in damp environment.
Flame resistant epoxy resin powder coating (UL94/V-0).

Operating Temperature	-40°C~ +105°C
Rated Voltage	400V(230VAC)、630V(275VAC/305VAC/310VAC)
Capacitance Range	0.01 ~ 10.0μF
Capacitance Tolerance	±5%, ±10%, ±20%
Insulation Resistance	UR>100V C≤0.33uF IR ≥25000MΩ,C>0.33uF IR ≥7500s UR<100V C≤0.33uF IR ≥12500MΩ,C>0.33uF IR ≥3750s
Dissipation Factor	≤0.002 (at 1KHz) (typical 0.001 max)
