LPF04026000LT. Thin Film LGA Low Pass Filters. American Technical Ceramics (ATC)

American Technical Ceramics Thin Film 0402 LGA Low Pass Filters are offered in a broad range of selected cut-off frequencies, making the series ideal for wireless frequency applications. ATC LGA Low Pass Filters serve as a drop-in solution for critical filter applications. LPF series filters exhibit excellent passband insertion loss, stop-band rejection, and matching characteristics.

Spec Sheet

Email sales@bec.co.uk or call +44 (0)7774 754604 for pricing and more information

SKU: LPF04026000LT Category:

Description

Frequency Range: 0 MHz to 6 GHz
Impedance: 50 Ohms
Termination Style: SMD/SMT
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 85 C
Mounting: PCB Mount
RoHS Compliant

FEATURES

  • 2484MHz to 6000MHz typical cut-off frequency
  • 50Ω characteristic impedance
  • 0.35dB typical low insertion loss
  • -40°C to +85°C operating temperature
  • Low-profile LGA/SMT EIA package
  • Lead-free / RoHS compliant

APPLICATIONS

  • Wireless communications
  • WLANs
  • Public Safety Radio (P25)
  • LTE
  • ISM
  • Global Navigation Satellite Systems (GNSS)

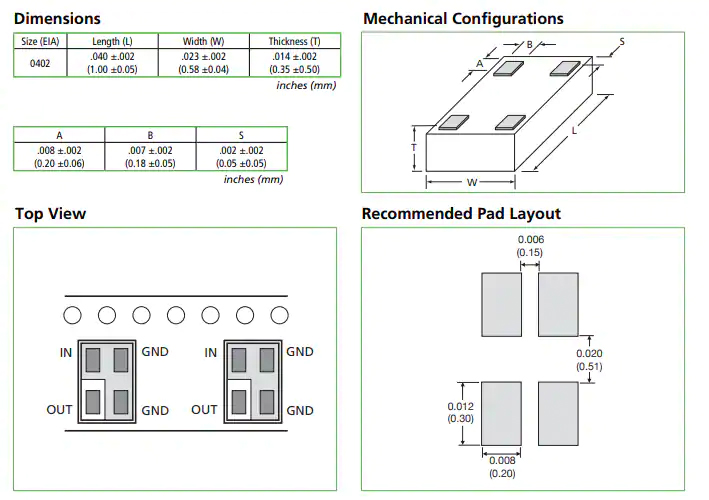

DIMENSIONS AND LAYOUT
